Does a Case Make Your iPhone Hot on MagSafe? Apple's 2.1 mm Rule

"I know it's been asked a million times," an r/iPhone17Pro member wrote in a thread titled Phone case for heat. Their phone got "super hot" and stopped charging while it was plugged in and running GPS, and they wanted a case with "the least amount of heat issues." Three heat sources sit in that one sentence: charging, navigation, and whatever the car was doing. The case got the blame anyway.

Apple has published enough to settle this. Its accessory design rules say exactly what a MagSafe case may be, and its iOS 27 user guide says what to do when a phone heats up while charging. Below is what those documents say, what a case can and cannot change, and how to check your own iPhone 18 Pro case or iPhone 18 Pro Max case in ten minutes. Apple pages were read on October 14, 2026.

The short answer

Yes, a case can add MagSafe heat, but only through two things Apple measures: thickness over the charging coil, capped at 2.1 mm, and magnet alignment.

• Warm is normal. Apple says the iPhone or the MagSafe Charger "might get slightly warmer," and software limits charging above 80 percent if the battery gets too warm.
• Apple's accessory spec caps a MagSafe case at 2.1 mm over the magnet ring, requires the magnet array, and bans a card pocket on the back.
• Apple's iOS 27 guide says to remove your case if the phone tends to heat up while charging. That is a ten-minute test, and it tells you more than any forum thread.
• A hot phone in the car is a different problem. Apple lists navigation in a hot car and direct sunlight as conditions to avoid.
• Thin alone proves nothing. The number that matters is thickness at the ring, and most listings, ours included, publish overall thickness instead.

Is it normal for an iPhone to get hot on MagSafe?

Slightly warm is normal and documented by Apple. A "Charging On Hold" message or a temperature alert is the phone protecting itself, and that deserves a cause.

Apple's MagSafe Charger page says that "as with other wireless chargers, your iPhone or MagSafe Charger might get slightly warmer while your iPhone charges." Its temperature page lists wireless charging among the ordinary reasons a device feels warm, next to software updates and graphics-heavy games.

Two messages mean more. "Charging On Hold. Charging will resume when iPhone returns to normal temperature" appears on iOS 16 and later when the phone is too hot or too cold to charge. A full-screen "Temperature: iPhone needs to cool down" alert is a higher threshold. Apple's advice for both: move it somewhere cooler, out of direct sunlight, and lock the screen.

A pause at 80 percent with no temperature message is a battery setting. Optimized Battery Charging delays charging past 80 percent on purpose, and iPhone 15 and later also have a Charge Limit, both under Settings, then Battery.

Does a case make an iPhone hot while charging?

It can, in two ways: by adding material between the two charging coils, and by letting the phone sit off-center on the charger. Apple's pages address both.

Wireless charging moves power between a coil in the charger and a coil in the phone, and power that does not cross that gap turns into heat. Apple's own description of MagSafe rests on this: it credits "optimal magnetic alignment for faster, more efficient charging" and says MagSafe "includes technologies that reduce energy waste when compared to other wireless charging methods." Alignment is the feature.

A case can undo it. Apple's wireless charging page says "magnetic mounts, magnetic cases, or other objects between your iPhone and the charger might reduce performance," and that a phone charging slowly in "a thick case, metal case, or battery case" should be tried without the case. A non-magnetic case on a MagSafe puck lets the phone drift off the coil. A thick or metal back widens the gap.

The iOS 27 user guide, on its page about thermally limited charging, goes one step further: "Remove your case if your iPhone tends to heat up while charging." Apple frames that as a troubleshooting step. It is how you find out whether your case is in the chain at all.

What does Apple's accessory spec say a MagSafe case can be?

Apple's Accessory Design Guidelines, in the release dated September 21, 2026, cap a MagSafe case at 2.1 mm at the magnet ring and require a magnet array on any case that claims MagSafe compatibility.

These are Apple's design rules for accessory makers, published on its developer site. They are not a certification our cases hold, and we are not claiming one. They matter because they name the numbers that count when a case and a charger meet.

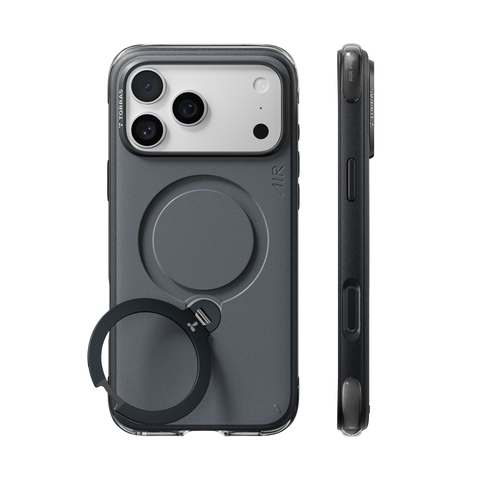

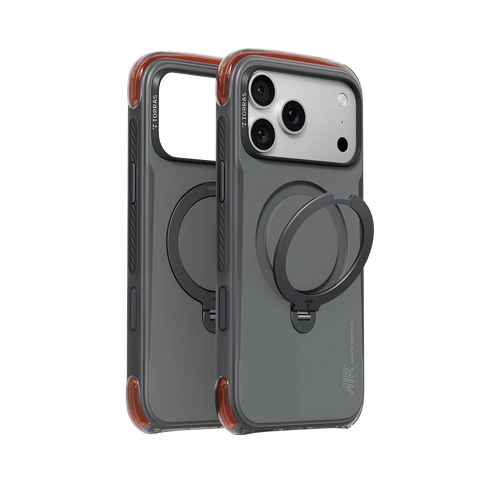

Notice what the 2.1 mm figure measures: the back of the case over the ring, not the side walls or corners. A case can carry thick air-cushion corners and still be thin where the coil sits. Our own listings quote overall profile, 2.8 mm for the Ostand Bios Air and 3.62 mm for the Ostand Q3 Rugged, plus a magnet rating. Those measure different places from Apple's ring figure, so do not line 2.8 up against 2.1 and draw a conclusion.

Why does my MagSafe charger get hot?

The puck itself is allowed to run warm. Check the adapter feeding it and the order you plug things in.

Apple covers the charger in the same sentence as the phone: either one "might get slightly warmer." Full speed needs a 30W or greater adapter, for up to 25W peak on the iPhone 18 Pro and 18 Pro Max. Apple also says to plug the charger into power before placing the phone; done the other way around, lift the phone, wait three seconds and put it back. A puck that runs hot with no phone on it is a charger question, and the case is not in the picture.

How do you check whether the case is the problem?

Charge twice under the same conditions, once with the case on and once with it off, and compare what the phone tells you. Apple's guide recommends the case-off step; this makes it fair.

1. Indoors, out of the sun, same charger and adapter both times. Apple's temperature page rules out the car and direct sunlight first.
2. Start both runs from a cool phone below 70 percent. That keeps you clear of the 80 percent hold, which is a battery setting.
3. Lock the screen and leave it alone for ten minutes. Navigation, video and games warm a phone by themselves, per Apple's list.
4. Take off any wallet, mount or card before either run. Apple says objects between phone and charger can reduce performance.
5. Write down what happened. Did the charging icon stay on? Did "Charging On Hold" appear? Your hand is not a thermometer, but a repeatable difference between the two runs is real information.

If the case-on run loses charging and the case-off run holds it, the case is either too thick over the coil or letting the phone sit off-center. If both runs behave the same, keep the case and look at the charger, the adapter or the room. If "Charging On Hold" shows up indoors with no case at all, contact Apple Support; the case was never the variable.

Why does my iPhone get hot while charging in the car?

Because the car stacks three of Apple's listed heat conditions at once: charging, navigation, and sun. The case is the one thing in that setup you can rule out quickly.

Apple's temperature page says to avoid "GPS tracking or navigation in a car" in hot conditions or direct sunlight, and warns that a parked car can exceed the phone's storage range. When the phone gets too warm while navigating, it shows "Temperature: iPhone needs to cool down" and turns off the display. That is the r/iPhone17Pro thread from the top of this article, almost word for word. Run the indoor check first; if the phone is fine at your desk with the case on, the car is the problem, and the fix is a vent mount out of the sun. Do not run any of this while driving.

What should you look for in a MagSafe case for iPhone 18 Pro?

Three things Apple's documents point to: a built-in magnet array, no card pocket between the phone and the charger, and a stand or accessory that gets out of the way when you charge.

The magnet array is the alignment fix. Under Apple's accessory rules a case cannot claim MagSafe compatibility without one, so "MagSafe compatible" on a listing is the claim to look for, and the circular outline on the back is where it lives. A wallet belongs on the outside of the case, where it comes off before charging. A stand that folds flat, like the ring on our Ostand cases, keeps the back of the phone on the puck.

Here is how our iPhone 18 Pro and 18 Pro Max cases describe themselves on those points. None of this is a thermal claim; we do not publish temperature data for cases and this article does not invent any.

Prices and wording are from glass.torraslife.com on October 14, 2026. If drop protection is your first filter, see heavy protection without bulk on the iPhone 18 Pro Max; if the open camera area worries you, see why iPhone 18 Pro cases leave the camera plateau exposed.

FAQ

Should I take my case off to charge my iPhone on MagSafe?

Not as a habit. Apple's iOS 27 guide says to remove your case if the phone tends to heat up while charging, which is a troubleshooting step. If charging stays on and the phone is only slightly warm, leave the case alone. If "Charging On Hold" appears indoors, run the case-on and case-off comparison and let the result decide.

Does MagSafe damage battery health?

Apple's pages do not say MagSafe damages the battery. They say the phone or charger may get slightly warmer, and that software limits charging above 80 percent if the battery gets too warm. Apple's warning is about heat in general: very hot conditions can permanently shorten battery life, so keep the phone out of the sun while it charges.

Why does my MagSafe charger get hot?

Apple says the MagSafe Charger itself might get slightly warmer during charging. Check that it is on a 30W or greater adapter and that it was plugged into power before the phone was placed on it. If the puck is hot with no phone on it, the charger or adapter needs attention, and the case is not involved.

Does a thicker case charge slower on MagSafe?

It can. Apple's wireless charging page says to try removing a thick, metal or battery case if the phone charges slowly, and its accessory spec caps a MagSafe case at 2.1 mm over the magnet ring. The overall thickness on a listing measures a different place from the thickness at the ring, so a case with thick corners can still be thin where the coil sits.

Can I charge with a wallet on the back of my case?

Take it off first. Apple says objects between the phone and the charger might reduce performance, and that cards, badges and key fobs can be damaged by the charger. Apple's accessory rules do not allow a card pocket on the back of a MagSafe case at all. A magnetic wallet on the outside comes off in one motion before charging.

What if my iPhone says "Charging On Hold" but it is not hot?

The same message covers too cold as well as too hot, so a phone left in a cold car can show it. If there is no temperature message and charging stopped at 80 percent, that is Optimized Battery Charging or the Charge Limit setting under Settings, then Battery, on iPhone 15 and later. Neither one points at your case.
